HQ975 series electromagnetic flow meters are specializing in measuring conductive liquid (conductivity> 5μs/cm）. These series flow meters have high applicability for low flow rate, sewage, acid and alkali liquid, low abrasive slurry. Our products have advance intellective-tech, field show and communicator. HQ970 series electromagnetic flow meter
type |

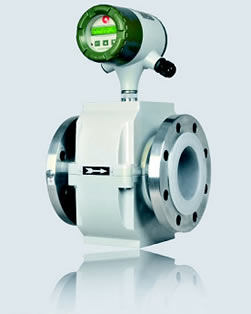

HQ975in-line electromagnetic flow meter |
HQ976 insertion electromagnetic flow meter |
medium |
Conductive liquid |
accuracy |
±0.5%,±1%(±0.35%) |
conductivity |
>=5μs/cm,>=20μcm（DN<=10mm） |
application |
Iron, steel, chemicals, petroleum, metallurgy, paper, food, urban drainage and other industries |
diameter |
D4mm—800mm（1000mm） |
D200mm—2000mm |
flow velocity |
0—0.3m/s至0—12m/s |
range of pressure |
4Mpa（MAX=40Mpa） |
environment |
T=-40—60℃，humidity 5%—90% |
Power |
<3W |
material |
Lining Material：F46，Hard Rubber, etc.
Electrode Material：Stainless Steel Containing Mo、Hastelloy B、Hastelloy C etc. |
signal output |
4—20mA
0—10mA
RS485,HART |
protect class |
IP65、IP68 |
|
